Gaining Advantage of High-Quality Optomechanical Setups

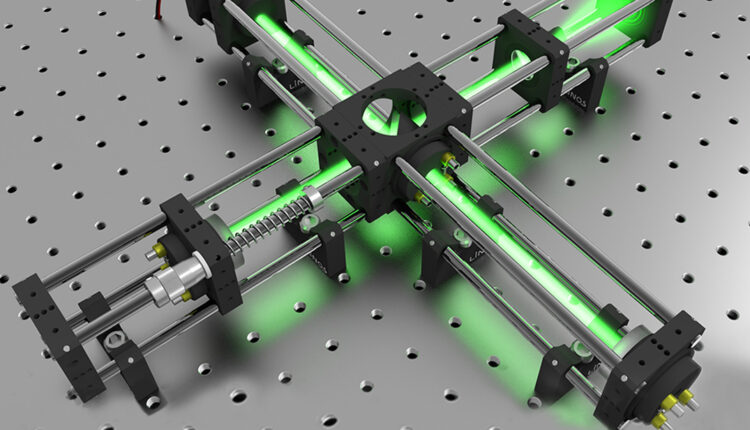

From lighting to Imaging, there are various setups that require the microbench cage system. The prime reason for its setup is the high mechanical stability, that it offers. Quality materials go into the device, and the axial precision also allows the narrowing of H7 tolerances. Even if there are new handlers, it is quite possible to handle the same in an effective manner. These four-rod cage systems are used in a variety of applications in the industrial arena.

Standardized mounting plates are utilized to integrate optics of all kinds. Stainless steel rods go into the creation of various linear and 3D structures in the engineering sector. The setup goes into building the strongest structures. Beam splitters, polarization optics, and optical fibers are used quite frequently.

More On the Microbench Cage System

Many mechanical setups today include the microbench cage system. All those instruments having this are great for demonstrations and practical training of any sort. The design or the layout is not covered. So, one can observe it with relative ease. It makes work easy for all. One can see the performance and add various components like grids, prisms, and mirrors. It is an important part of the optical libraries.

The utility is quite profound in the above industries. The various types of optomechanical devices include optical chopper, scanning galvo mirrors, motorized pinhole wheels, and optical beam shutters, amongst others. The cage system is in use in all areas of opting mechanics. Wherever one looks, one can see the system being used. It is a fine amalgamation of optical and mechanical engineering that can give rise to the best optical systems. Optical systems have to meet stringent norms, in all aspects, from shape to size. However, it also has to resist all kinds of external loads. Thus, it is a big challenge that many have to endure.

Applications and Features Decoded

More applications are emerging in segments like imaging optics, lasers, and fibers. Cameras, microscopes, and lenses are in wide circulation and demand more microbench cage systems for usage. Some of the biggest and best features worth mentioning in this arena are:

  •       High mechanical stability
  •       Ease of handling
  •       Flexibility
  •       Use of high precision optomechanical components
  •       Great surface finishing
  •       Compatibility with other optomechanical systems.

These are the top features, that make it all the more interesting.

Optical metrology is one of the fields where the cage system occupies maximum importance. It is basically science and technology that concerns various measurements, including light as well. The measurements are mainly focused on the properties of light itself or some other properties like distances. A lot of research has gone into the field, making use of advanced 4-rod systems a reality.

Spectrometry is another division that is worth mentioning here. The technique mainly involves the distribution of light. It includes ultraviolet rays to visible, and infrared as well.

Detailed Description Of The Equipment

Equipment for optical laboratories uses the technology with full impact. These are positioned to provide better imaging capabilities. All tools used in research laboratories, biotechnology, and semiconductor industries are reliant on such structures. Laser is one of the segments that require a high amount of isolation. So, that is where the technology delivers. Moreover, motorized filters, optical shutter systems, fluorescence illuminators, and rotary devices are utilizing this to the fullest today.

Such systems are available today in 16 mm, 30 mm, or 60 mm finishes. Now, users can also switch from one system to another within a short while. That makes it all the more advantageous. Various setups have various mounting options that primarily aim to deliver the best utility.

The optical sector has advanced a lot, in keeping with the current developments. The current model which is being used came up from the optical erectors used in children’s toys. The individual lenses are secured with single mounting plates that make the construction easy. Furthermore, the removal of corner-connector bores has made it even more beneficial today. Now, one can also avail of these at a lower price, than earlier.

The combination of optical engineering, and mechanical engineering is indeed a very powerful way to maximize the output for such devices.


Many educational, as well as research laboratories, are using the systems today. Moreover, one may find most of these innovations to be patented. So, it is the way forward for various related industries at present.
